7.11.2011

Adafruit Library for the Nokia LCD

So its been awhile....guess I just got busy being a Dad and havent had much time to tinker.

Jumping back 4 months to my last post, I hooked my Nokia LCD back up to my Arduino and started to tinker and learn again. Figured I would do some searching for a library and use that as a springboard for learning how best to interact with the LCD. A bit of Googling and I came across Adafruit's website where they sell a similar product to the one I got off of Sparkfun. They also have a tutorial page with some tips on hooking the LCD up to an Arduino and of course they link to their test code and library on Github.
Posted by Kuepker at 16:48 0 comments

2.21.2011

Graphic LCD 84x48

Grabbed a handy LCD from Sparkfun a couple weeks back and I am just now getting around to hooking it up and testing it.The LCD is a monochrome 84x48 LCD with an LED backlight and is accessed through a serial interface. Head here for the Sparkfun product page.


After reading through some of the comments I was a little wary on how to hook up and power the LCD. But I decided to push and on just power the LCD straight from the 5V rail on the Arduino. As I mentioned earlier I modified the pin assignments in the example code but all in all it seems pretty straight-forward. I did modify the Vop command for the contrast. Not sure if this is an LCD to LCD issue but I used what seemed to look the best for me on my LCD.

I also was a little confused on the best way to power the LED pin for the backlight. So I decided to start conservatively and use the 5V rail but use 1Kohm resistor. This works fine and gives enough light to read it comfortably in a dimly lit room. You can probably use a smaller resistor to get more light but this worked for me.

Eagle schematic and possibly more robust code to follow (if I can find the time when Im not playing with my little one).

Here's is my slightly modified code:


/**************************************************
 * Nokia LCD Test
 * Kyle Kuepker
 * 18 February 2011
 *
 * A quick sketch to test a Nokia 5110 LCD.
 * Code modified from Sparkfun.com
 ***************************************************/
#define LCD_CMD 0
#define PIN_SCE   13
#define PIN_RESET 12
#define PIN_DC    11
#define PIN_SDIN  10
#define PIN_SCLK  9

#define LCD_C     LOW
#define LCD_D     HIGH

#define LCD_X     84
#define LCD_Y     48

static const byte ASCII[][5] ={
 {0x00, 0x00, 0x00, 0x00, 0x00} // 20
,{0x00, 0x00, 0x5f, 0x00, 0x00} // 21 !
,{0x00, 0x07, 0x00, 0x07, 0x00} // 22 "
,{0x14, 0x7f, 0x14, 0x7f, 0x14} // 23 #
,{0x24, 0x2a, 0x7f, 0x2a, 0x12} // 24 $
,{0x23, 0x13, 0x08, 0x64, 0x62} // 25 %
,{0x36, 0x49, 0x55, 0x22, 0x50} // 26 &
,{0x00, 0x05, 0x03, 0x00, 0x00} // 27 '
,{0x00, 0x1c, 0x22, 0x41, 0x00} // 28 (
,{0x00, 0x41, 0x22, 0x1c, 0x00} // 29 )
,{0x14, 0x08, 0x3e, 0x08, 0x14} // 2a *
,{0x08, 0x08, 0x3e, 0x08, 0x08} // 2b +
,{0x00, 0x50, 0x30, 0x00, 0x00} // 2c ,
,{0x08, 0x08, 0x08, 0x08, 0x08} // 2d -
,{0x00, 0x60, 0x60, 0x00, 0x00} // 2e .
,{0x20, 0x10, 0x08, 0x04, 0x02} // 2f /
,{0x3e, 0x51, 0x49, 0x45, 0x3e} // 30 0
,{0x00, 0x42, 0x7f, 0x40, 0x00} // 31 1
,{0x42, 0x61, 0x51, 0x49, 0x46} // 32 2
,{0x21, 0x41, 0x45, 0x4b, 0x31} // 33 3
,{0x18, 0x14, 0x12, 0x7f, 0x10} // 34 4
,{0x27, 0x45, 0x45, 0x45, 0x39} // 35 5
,{0x3c, 0x4a, 0x49, 0x49, 0x30} // 36 6
,{0x01, 0x71, 0x09, 0x05, 0x03} // 37 7
,{0x36, 0x49, 0x49, 0x49, 0x36} // 38 8
,{0x06, 0x49, 0x49, 0x29, 0x1e} // 39 9
,{0x00, 0x36, 0x36, 0x00, 0x00} // 3a :
,{0x00, 0x56, 0x36, 0x00, 0x00} // 3b ;
,{0x08, 0x14, 0x22, 0x41, 0x00} // 3c <
,{0x14, 0x14, 0x14, 0x14, 0x14} // 3d =
,{0x00, 0x41, 0x22, 0x14, 0x08} // 3e >
,{0x02, 0x01, 0x51, 0x09, 0x06} // 3f ?
,{0x32, 0x49, 0x79, 0x41, 0x3e} // 40 @
,{0x7e, 0x11, 0x11, 0x11, 0x7e} // 41 A
,{0x7f, 0x49, 0x49, 0x49, 0x36} // 42 B
,{0x3e, 0x41, 0x41, 0x41, 0x22} // 43 C
,{0x7f, 0x41, 0x41, 0x22, 0x1c} // 44 D
,{0x7f, 0x49, 0x49, 0x49, 0x41} // 45 E
,{0x7f, 0x09, 0x09, 0x09, 0x01} // 46 F
,{0x3e, 0x41, 0x49, 0x49, 0x7a} // 47 G
,{0x7f, 0x08, 0x08, 0x08, 0x7f} // 48 H
,{0x00, 0x41, 0x7f, 0x41, 0x00} // 49 I
,{0x20, 0x40, 0x41, 0x3f, 0x01} // 4a J
,{0x7f, 0x08, 0x14, 0x22, 0x41} // 4b K
,{0x7f, 0x40, 0x40, 0x40, 0x40} // 4c L
,{0x7f, 0x02, 0x0c, 0x02, 0x7f} // 4d M
,{0x7f, 0x04, 0x08, 0x10, 0x7f} // 4e N
,{0x3e, 0x41, 0x41, 0x41, 0x3e} // 4f O
,{0x7f, 0x09, 0x09, 0x09, 0x06} // 50 P
,{0x3e, 0x41, 0x51, 0x21, 0x5e} // 51 Q
,{0x7f, 0x09, 0x19, 0x29, 0x46} // 52 R
,{0x46, 0x49, 0x49, 0x49, 0x31} // 53 S
,{0x01, 0x01, 0x7f, 0x01, 0x01} // 54 T
,{0x3f, 0x40, 0x40, 0x40, 0x3f} // 55 U
,{0x1f, 0x20, 0x40, 0x20, 0x1f} // 56 V
,{0x3f, 0x40, 0x38, 0x40, 0x3f} // 57 W
,{0x63, 0x14, 0x08, 0x14, 0x63} // 58 X
,{0x07, 0x08, 0x70, 0x08, 0x07} // 59 Y
,{0x61, 0x51, 0x49, 0x45, 0x43} // 5a Z
,{0x00, 0x7f, 0x41, 0x41, 0x00} // 5b [
,{0x02, 0x04, 0x08, 0x10, 0x20} // 5c ¥
,{0x00, 0x41, 0x41, 0x7f, 0x00} // 5d ]
,{0x04, 0x02, 0x01, 0x02, 0x04} // 5e ^
,{0x40, 0x40, 0x40, 0x40, 0x40} // 5f _
,{0x00, 0x01, 0x02, 0x04, 0x00} // 60 `
,{0x20, 0x54, 0x54, 0x54, 0x78} // 61 a
,{0x7f, 0x48, 0x44, 0x44, 0x38} // 62 b
,{0x38, 0x44, 0x44, 0x44, 0x20} // 63 c
,{0x38, 0x44, 0x44, 0x48, 0x7f} // 64 d
,{0x38, 0x54, 0x54, 0x54, 0x18} // 65 e
,{0x08, 0x7e, 0x09, 0x01, 0x02} // 66 f
,{0x0c, 0x52, 0x52, 0x52, 0x3e} // 67 g
,{0x7f, 0x08, 0x04, 0x04, 0x78} // 68 h
,{0x00, 0x44, 0x7d, 0x40, 0x00} // 69 i
,{0x20, 0x40, 0x44, 0x3d, 0x00} // 6a j
,{0x7f, 0x10, 0x28, 0x44, 0x00} // 6b k
,{0x00, 0x41, 0x7f, 0x40, 0x00} // 6c l
,{0x7c, 0x04, 0x18, 0x04, 0x78} // 6d m
,{0x7c, 0x08, 0x04, 0x04, 0x78} // 6e n
,{0x38, 0x44, 0x44, 0x44, 0x38} // 6f o
,{0x7c, 0x14, 0x14, 0x14, 0x08} // 70 p
,{0x08, 0x14, 0x14, 0x18, 0x7c} // 71 q
,{0x7c, 0x08, 0x04, 0x04, 0x08} // 72 r
,{0x48, 0x54, 0x54, 0x54, 0x20} // 73 s
,{0x04, 0x3f, 0x44, 0x40, 0x20} // 74 t
,{0x3c, 0x40, 0x40, 0x20, 0x7c} // 75 u
,{0x1c, 0x20, 0x40, 0x20, 0x1c} // 76 v
,{0x3c, 0x40, 0x30, 0x40, 0x3c} // 77 w
,{0x44, 0x28, 0x10, 0x28, 0x44} // 78 x
,{0x0c, 0x50, 0x50, 0x50, 0x3c} // 79 y
,{0x44, 0x64, 0x54, 0x4c, 0x44} // 7a z
,{0x00, 0x08, 0x36, 0x41, 0x00} // 7b {
,{0x00, 0x00, 0x7f, 0x00, 0x00} // 7c |
,{0x00, 0x41, 0x36, 0x08, 0x00} // 7d }
,{0x10, 0x08, 0x08, 0x10, 0x08} // 7e ←
,{0x78, 0x46, 0x41, 0x46, 0x78} // 7f →
};

char SFEFlame[]={
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0xE0, 0xF0, 0xF8, 0xFC, 0xFC, 0xFE, 0xFE, 0xFE, 0xFE, 0x1E, 0x0E, 0x02, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x1F, 0x3F, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFE, 0xFC, 0xF8, 0xF8, 0xF0, 0xF8, 0xFE, 0xFE, 0xFC, 0xF8, 0xE0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0xF8, 0xFC, 0xFE, 0xFE, 0xFF, 0xFF, 0xF3, 0xE0, 0xE0, 0xC0, 0xC0, 0xC0, 0xE0, 0xE0,
0xF1, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0x3E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x7F,
0x3F, 0x1F, 0x07, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0x7F, 0x3F, 0x1F, 0x0F, 0x0F, 0x0F, 0x07, 0x07, 0x07, 0x07, 0x07, 0x07, 0x07, 0x03, 0x03,
0x01, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x1F,
0x0F, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  };

char SFEFlameBubble [] = {
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80,
0xC0, 0xC0, 0xE0, 0xE0, 0xF0, 0xF8, 0xF8, 0xFC, 0xFC, 0xFC, 0xFC, 0xFE, 0xFE, 0xFE, 0xFE, 0xFE,
0xFE, 0xFE, 0xFE, 0xFE, 0xFC, 0xFC, 0xFC, 0xFC, 0xFC, 0xF8, 0xF0, 0xE0, 0xE0, 0xC0, 0xC0, 0x80,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0,
0xF8, 0xFC, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x7F, 0x3F, 0x3F, 0x3F,
0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x3F, 0x3F, 0x3F, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0xF8, 0xE0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0xC0, 0xFC, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x1F, 0x0F, 0x3F, 0x7F, 0x7F, 0x3F, 0x1E,
0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x01, 0x03, 0x0F, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x01, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0xF0, 0xE0,
0xE0, 0xC0, 0xC0, 0xE0, 0xE0, 0xE0, 0xF0, 0xF8, 0x7C, 0x7C, 0x7E, 0x7C, 0x38, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
0xFF, 0xFF, 0xFF, 0xF8, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x07, 0x0F, 0x3F, 0x7F, 0xFF,
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF0, 0xF0,
0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0, 0xE0,
0xE1, 0xE3, 0xE3, 0xE7, 0xEF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE, 0xFC, 0xF8, 0xF0, 0xE0,
0xC0, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x07, 0x07, 0x0F, 0x1F, 0x1F, 0x1F, 0x3F, 0x3F, 0x3F, 0x3F,
0x3F, 0x3F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F,
0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F,
0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7F, 0x7E, 0x7C, 0x78, 0x70, 0x60, 0x40, 0x40, 0x00,
0x00,
};

char awesome[]={
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xC0, 0xE0, 0x70, 0x30, 0x18, 0x1C,
0x0C, 0x0C, 0x06, 0x06, 0x07, 0x07, 0x03, 0x03, 0x03, 0x03, 0x03, 0x03, 0x03, 0x03, 0x03, 0x07,
0x07, 0x07, 0x0E, 0x06, 0x1C, 0x1C, 0x38, 0x70, 0x70, 0xE0, 0xE0, 0xC0, 0x80, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF0, 0x3C, 0xCE, 0x67, 0x33, 0x18, 0x08,
0x08, 0xC8, 0xF8, 0xF0, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0,
0x70, 0x38, 0x18, 0x18, 0x08, 0x08, 0x08, 0xF8, 0xF0, 0xF0, 0xE0, 0xC0, 0x00, 0x00, 0x01, 0x07,
0x0F, 0x3C, 0xF8, 0xE0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0xFF, 0x0F, 0x00, 0x0C, 0x7F,
0x60, 0x60, 0x60, 0x60, 0x60, 0x61, 0x61, 0x61, 0x61, 0x61, 0x7F, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x7F, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x61, 0x61, 0x61, 0x61, 0x63,
0x7E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xFF, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0xFF,
0xF0, 0x00, 0x00, 0x00, 0x08, 0x08, 0xFC, 0x8C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C,
0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C, 0x0C,
0x0C, 0x0C, 0x0C, 0xF8, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xFF, 0x1F, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x07, 0x0F, 0x3C, 0x70, 0xE0, 0x80, 0x00, 0x07, 0x0C, 0x38, 0x60, 0xC0,
0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xE0, 0xF0, 0xF0, 0xF0, 0xF8, 0xF8, 0xF8, 0xF8, 0xF0,
0xF0, 0xE0, 0xC0, 0x80, 0xC0, 0x30, 0x18, 0x0F, 0x00, 0x00, 0x80, 0xC0, 0x70, 0x3C, 0x1F, 0x07,
0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x03, 0x06,
0x0E, 0x1C, 0x18, 0x38, 0x31, 0x73, 0x62, 0x66, 0x64, 0xC7, 0xCF, 0xCF, 0xCF, 0xCF, 0xCF, 0xCF,
0xC7, 0xC7, 0xC7, 0x67, 0x63, 0x63, 0x71, 0x30, 0x38, 0x18, 0x1C, 0x0C, 0x06, 0x03, 0x03, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  };

void gotoXY(int x, int y)
{
  LcdWrite( 0, 0x80 | x);  // Column.
  LcdWrite( 0, 0x40 | y);  // Row.  ?

}
void LcdBmp(char my_array[])
{
  for (int index = 0; index < 504; index++)
  {
    LcdWrite(LCD_D, my_array[index]);
  }
}

void LcdCharacter(char character)
{
  LcdWrite(LCD_D, 0x00);
  for (int index = 0; index < 5; index++)
  {
    LcdWrite(LCD_D, ASCII[character - 0x20][index]);
  }
  LcdWrite(LCD_D, 0x00);
}
void LcdString(char *characters)
{
  while (*characters)
  {
    LcdCharacter(*characters++);
  }
}


void LcdClear(void)
{
  for (int index = 0; index < LCD_X * LCD_Y / 8; index++)
  {
    LcdWrite(LCD_D, 0x00);
  }
}

void LcdInitialise(void)
{
  pinMode(PIN_SCE, OUTPUT);
  pinMode(PIN_RESET, OUTPUT);
  pinMode(PIN_DC, OUTPUT);
  pinMode(PIN_SDIN, OUTPUT);
  pinMode(PIN_SCLK, OUTPUT);
  digitalWrite(PIN_RESET, LOW);
  digitalWrite(PIN_RESET, HIGH);
  LcdWrite(LCD_C, 0x20);
  LcdWrite(LCD_C, 0x0C);
  LcdWrite( LCD_CMD, 0x21 ); // LCD Extended Commands.
  LcdWrite( LCD_CMD, 0xAF ); // Set LCD Vop (Contrast). //B1
  LcdWrite( LCD_CMD, 0x04 ); // Set Temp coefficent. //0x04
  LcdWrite( LCD_CMD, 0x14 ); // LCD bias mode 1:48. //0x13
  LcdWrite( LCD_CMD, 0x0C ); // LCD in normal mode. 0x0d for inverse
}

void LcdWrite(byte dc, byte data)
{
  digitalWrite(PIN_DC, dc);
  digitalWrite(PIN_SCE, LOW);
  shiftOut(PIN_SDIN, PIN_SCLK, MSBFIRST, data);
  digitalWrite(PIN_SCE, HIGH);
}

void setup(void)
{
  LcdInitialise();
  LcdClear();
}

void loop(void)
{
  LcdInitialise();
  LcdClear();
  LcdBmp(SFEFlame);
  delay(1000);
  //LcdInitialise();
  LcdClear();
  LcdBmp(SFEFlameBubble);
  delay(1000);
  LcdClear();
  LcdBmp(awesome);
  delay(1000);
  LcdClear();
  LcdString("Hello World!");
  delay(1000);
  LcdClear();
}
Posted by Kuepker at 17:02 0 comments

2.04.2011

Coming Attractions....

Dont have time to write up any details now but this is my newest creation....
Posted by Kuepker at 23:09 0 comments

12.31.2010

Shift Register with LEDs

So I bought a cool LED bar graph from Sparkfun and wanted a good way to light it up.....in steps the Shift Register (datasheet).

Shift Register
A shift register is a good to way to multiply the digital outputs on a microcontroller. By using 3 digital I/O pins you can get at a minimum 8 digital I/O pins. And on top of that by adding a second Shift Register you can turn 3 pins into 16 pins.

See the diagram for reference of the operation of a Shift Register. The Shift Register is aptly named because you bit by bit 'shift' the 1's and 0's into its registers. Internally the device has two registers, the Shift Register and Storage Register. You can think of the shift register as a waiting area and the storage register as the active area. You shift in your desired 1's and 0's into the shift register initially, and then once you are ready, you flip a switch and those 1's and 0's get transferred to the storage register. Whatever is in the storage register is what you can see on the external pins. Shift in a zero at a spot and the pin that is mapped to that spot will look like a ground or LOW. Shift in a one and that spot will look like a HIGH on that pin.


My Test Circuit
So back to my little LED bar graph. See picture of my test circuit below. In words, the Shift Register is connected to the Arduino by pins 5, 6 and 7. Pin 5 is connected to the Serial Data pin of the Shift Register, pin 6 the Latch pin and pin 7 the Clock pin. The 8 outputs of the Shift Register are connected through resistors to the anodes of LEDs.

So, not a terribly difficult circuit but a good way to learn the use of a Shift Register.

See my test code below......


/***************************************************************
  Single Shift Register Test Sketch
  Shift_Reg_Test.pde

  Kyle Kuepker
  31 December 2010

  A test sketch to exercise a single Shift Register to light 8 LEDs.

  Intended Hardware implementation:
  Arduino pins 5,6,7 are connected to Shift Register data,
  latch and clock pins respectively.  Each output of the Shift
  Register is connected through a resistor to the anode of an
  LED.  Shift register outputs are active HIGH for the LEDs
  (a HIGH output on a Shift Register pin will turn ON an LED).
***************************************************************/
// Data pin number for Arduino
#define data_Pin 5
// Latch pin number for Arduino
#define latch_Pin 6
// Clock pin number for Arduino
#define clock_Pin 7

//Define a delay for testing purposes
#define delay_ms 100

void setup() {
  //Setup serial test for debugging
  Serial.begin(9600);
  Serial.println("Connected");

  //Set shift register control pins to outputs on Arduino
  pinMode(latchPin, OUTPUT);
  pinMode(dataPin, OUTPUT);
  pinMode(clockPin, OUTPUT);
}

void loop() {
  // Turn on first LED
  sendByte(0b00000001);
  delay(delay_ms);
  // Turn on second LED
  sendByte(0b00000010);
  delay(delay_ms);
  // Turn on third LED
  sendByte(0b00000100);
  delay(delay_ms);
  // Turn on fourth LED
  sendByte(0b00001000);
  delay(delay_ms);
  // Turn on fifth LED
  sendByte(0b00010000);
  delay(delay_ms);
  // Turn on sixth LED
  sendByte(0b00100000);
  delay(delay_ms);
  // Turn on seventh LED
  sendByte(0b01000000);
  delay(delay_ms);
  // Turn on eighth LED
  sendByte(0b10000000);
  delay(delay_ms);
  // Turn on seventh LED
  sendByte(0b01000000);
  delay(delay_ms);
  // Turn on sixth LED
  sendByte(0b00100000);
  delay(delay_ms);
  // Turn on fifth LE
  sendByte(0b00010000);
  delay(delay_ms);
  // Turn on fourth LED
  sendByte(0b00001000);
  delay(delay_ms);
  // Turn on third LED
  sendByte(0b00000100);
  delay(delay_ms);
  // Turn on second LED
  sendByte(0b00000010);
  delay(delay_ms);
}

void sendByte(byte data){
  digitalWrite(latchPin, LOW);
  shiftOut(dataPin, clockPin, MSBFIRST, data);
  digitalWrite(latchPin, HIGH);
}
Posted by Kuepker at 19:37 0 comments

8.27.2010

EEPROM anomaly

I got some time tonight to run a more extended test on my EEPROM setup to really see if it will write correctly to all three 24FC512 EEPROMs.

My setup:


The code is below.

So the program is setup to write data across the 3 EEPROMs until it fills all available space. The program creates 300 records at a time and loops for 66 times. This will create 19800 records which is 141 records more than the maximum allowable amount of 19659. The total number of records available is a function of the total memory size of the 3 EEPROMs and the size of my data structure. The test will be to see if it writes correctly to the 3 EEPROMS and what it will do when it runs out of addressable space.

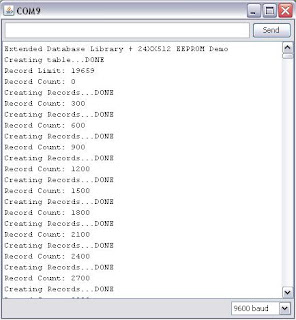

I uploaded the code and let it start cranking. Building the random data takes some time so I was prepared to wait.

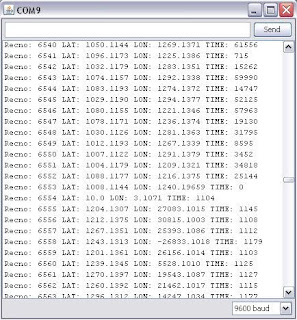

So far so good......but wait my data looks corrupted.

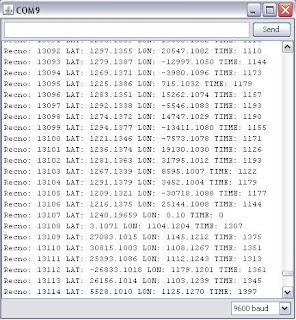

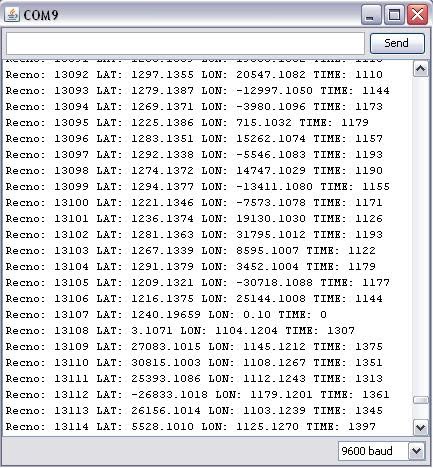

But it still is exhibiting a discernable pattern. But wait.....the pattern changed again.

Hmmm....I wonder why it doesnt write the data correctly. It is writing to valid addresses on the EEPROM, but the data has gotten jumbled and isn't printing out correctly. This will need some investigation. My initial guess is it is running into problems when it meets the address boundaries between the separate EEPROMs.

The code:


/*
 EDB_24XX512.pde
 Extended Database Library + 24XX512 EEPROM Demo Sketch

 The Extended Database library project page is here:
 http://www.arduino.cc/playground/Code/ExtendedDatabaseLibrary

 The E24C1024 library project page is here:
 http://www.arduino.cc/playground/Code/I2CEEPROM24C1024

 */
#include "WProgram.h"
#include

// Use the 24XX512 EEPROM as storage
#include
#include  // Should be compatible with 24XX512 series in this instance

// From the 24XX512 datasheet:
//
// The Chip Select bits A2, A1 and A0 can be used to expand the
// contiguous address space for up to 4 Mbit by adding up to eight
// 24XX512 devices on the same bus.
//
// So, each device must be have their address pins wired as listed below to
// create a single, contiguous address space across one or more devices.
//
// Example - 1 device:
// Device connections: A0->GND, A1->GND, A2->GND
// Uncomment only the #define TABLE_SIZE 65536 line below.

// Example - 3 devices:
// Device 1 connections: A0->GND, A1->GND, A2->GND
// Device 2 connections: A0->+5V, A1->GND, A2->GND
// Device 3 connections: A0->GND, A1->+5V, A2->GND
// Uncomment only the #define TABLE_SIZE 196608 line below.
//
// Uncomment the ONE line appropriate for your platform.
//#define TABLE_SIZE 65536 // 1 device: A0->GND, A1->GND, A2->GND
//#define TABLE_SIZE 131072 // 2 devices: A0->+5V, A1->GND, A2->GND
#define TABLE_SIZE 196608 // 3 devices: A0->GND, A1->+5V, A2->GND
//#define TABLE_SIZE 262144 // 4 devices: A0->+5V, A1->+5V, A2->GND
//#define TABLE_SIZE 327680 // 5 devices: A0->GND, A1->GND, A2->+5V
//#define TABLE_SIZE 393216 // 6 devices: A0->+5V, A1->GND, A2->+5V
//#define TABLE_SIZE 458752 // 7 devices: A0->GND, A1->+5V, A2->+5V
//#define TABLE_SIZE 524288 // 8 devices: A0->+5V, A1->+5V, A2->+5V

// default to the smallest - 1 device
#ifndef TABLE_SIZE
#define TABLE_SIZE 65536
#endif

// The number of demo records that should be created.  This should be less
// than (TABLE_SIZE - sizeof(EDB_Header)) / sizeof(LogEvent).  If it is higher,
// operations will return EDB_OUT_OF_RANGE for all records outside the usable range.
#define RECORDS_TO_CREATE 300

// Arbitrary record definition for this table.
// This should be modified to reflect your record needs.
struct LogEvent {
  int Lat1;
  int Lat2;
  int Lon1;
  int Lon2;
  unsigned int UTC_Time;
}
logEvent;

// Create an EDB object with the appropriate write and read handlers
EDB db(&E24C1024::write, &E24C1024::read);

// Run the demo
void setup()
{
  Serial.begin(9600);
  Serial.println("Extended Database Library + 24XX512 EEPROM Demo");

  randomSeed(analogRead(0));

  // create a table with starting address 0
  Serial.print("Creating table...");
  db.create(0, TABLE_SIZE, (unsigned int)sizeof(logEvent));
  Serial.println("DONE");

  recordLimit();
  countRecords();

  for(int j = 0; j < 66; j++)
  {
    createRecords(RECORDS_TO_CREATE);
    countRecords();
  }

  selectAll();
  countRecords();
  deleteAll();
  countRecords();
//  createRecords(RECORDS_TO_CREATE);
//  countRecords();
//  selectAll();
//  countRecords();
//  deleteAll();
//  countRecords();
}

void loop()
{
}

void recordLimit()
{
  Serial.print("Record Limit: ");
  Serial.println(db.limit());
}

void deleteAll()
{
  Serial.print("Truncating table...");
  db.clear();
  Serial.println("DONE");
}

void countRecords()
{
  Serial.print("Record Count: ");
  Serial.println(db.count());
}

void createRecords(int num_recs)
{
  Serial.print("Creating Records...");
  for (int recno = 1; recno <= num_recs; recno++)
  {
    logEvent.Lat1 = random(1001, 1100);
    logEvent.Lat2 = random(1101, 1200);
    logEvent.Lon1 = random(1201, 1300);
    logEvent.Lon2 = random(1301, 1400);
    logEvent.UTC_Time = random(0, 240000);
    EDB_Status result = db.appendRec(EDB_REC logEvent);
    if (result != EDB_OK) printError(result);
  }
  Serial.println("DONE");
}

void selectAll()
{
  for (int recno = 1; recno <= db.count(); recno++)
  {
    EDB_Status result = db.readRec(recno, EDB_REC logEvent);
    if (result == EDB_OK)
    {
      Serial.print("Recno: "); Serial.print(recno);
      Serial.print(" LAT: ");
      Serial.print(logEvent.Lat1); Serial.print("."); Serial.print(logEvent.Lat2);
      Serial.print(" LON: ");
      Serial.print(logEvent.Lon1); Serial.print("."); Serial.print(logEvent.Lon2);
      Serial.print(" TIME: "); Serial.println(logEvent.UTC_Time);
    }
    else printError(result);
  }
}

void printError(EDB_Status err)
{
  Serial.print("ERROR: ");
  switch (err)
  {
    case EDB_OUT_OF_RANGE:
      Serial.println("Recno out of range");
      break;
    case EDB_TABLE_FULL:
      Serial.println("Table full");
      break;
    case EDB_OK:
      Serial.println("OK");
      break;
    default:
      Serial.println("Unknown Error");
      break;
  }
}
Posted by Kuepker at 21:19 0 comments

8.25.2010

Serial EEPROM Memory cont.

So a couple more notes on my last post...

The code posted is actually my second working sketch for this Serial EEPROM test. For that particular sketch I was using 3 24FC512s all hooked up on the I2C bus at the same time. The original code can be found at this link. The only differences are defining the TABLE_SIZE to include the memory space of 3 devices and I also modified the logEvent structure to suit my anticipated needs for a GPS logger. But most of the code is left untouched. Like I said earlier, all the heavy lifting was done by other smarter people. Maybe if I get the time, and more importantly, the motivation I will go back and rewrite my own library so I can better understand what is really going on behind the scenes. But for now, its working, and thats good enough for me.

Thanks Arduino Community! You make my life so much easier.
Posted by Kuepker at 22:27 0 comments

Serial EEPROM Memory

So on my journey to ultimately one day making a killer quadcopter or other autonomous aerial vehicle, I have identified a few key technologies that I need to get a good grasp on that will ultimately be used in any project. Dove-tailing off my previous tinkering with my GPS and with an impending family trip coming up I was hoping to have a working GPS logger ready to capture the path we take on our daily adventures. (Not sure how the wife is gonna feel about me tinkering at night on vacation?!)

So besides getting a full SD card logger ready I thought I might try to use some serial EEPROMs from Microchip. I have had an account with Microchip all the way back to my undergrad days and it is very easy and very quick to get free samples from them, and totally free is my favorite price.

So I went to their website and started searching through their memory product line. I was initially interested in checking out their Flash based product line but that link sent me to another website, SST - Silicon Storage Technology Inc., that wasnt managed through Microchip Sample website. To get samples of their flash products you have to fill out a request form.....that wasnt going to happen. So back to the Microchip website and looking at some Serial EEPROM devices. Since Arduino has I2C and SPI interfaces I started looking for products that interface through those protocols. I eventually settled on the 24XXYYY family of devices that communicate through I2C. Their sizes range from 128 bit all the way up to 8 MBit and up to 8 separate devices can be placed on the same I2C bus to expand your storage capabilities even further. Unfortunately the largest EEPROM, the 24FC1025, had a long lead time of something like 46 weeks (RIDICULOUS!) so I wound up placing an order for the 24FC512 (which will more than accomplish what I am doing.

So after some google and forum searching for Arduino and Serial EEPROM help and reading through the 24FC512's datasheet I figured I had found enough to try and get it working. A few of the more helpful sites are:
Arduino Tutorial
Arduino Forum with links to the Extended Database Library and a 24ACas well as a sample Arduino program for working with the 24FC512

Basically most of my work was done for me. I just needed to ensure I hooked up everything correctly, like the Arduino to EEPROM I2C interface, and not surprisingly it worked exactly like I had hoped.

To use my sketch you must download and place in your Arduino library these two files:
Extended Database Library
AT24C1024 Library

Once you have those you can upload the sketch below, and assuming everything is connected properly you should be good to go.

The Arduino sketch looks like this:


#include "WProgram.h"
#include

// Use the 24XX512 EEPROM as storage
#include       //Handles the I2C interface
#include  // Should be compatible with 24XX512 series in this instance

// From the 24XX512 datasheet:
//
// The Chip Select bits A2, A1 and A0 can be used to expand the
// contiguous address space for up to 4 Mbit by adding up to eight
// 24XX512 devices on the same bus.
//
// So, each device must be have their address pins wired as listed below to
// create a single, contiguous address space across one or more devices.
//
// Example - 1 device:
// Device connections: A0->GND, A1->GND, A2->GND
// Uncomment only the #define TABLE_SIZE 65536 line below.

// Example - 3 devices:
// Device 1 connections: A0->GND, A1->GND, A2->GND
// Device 2 connections: A0->+5V, A1->GND, A2->GND
// Device 3 connections: A0->GND, A1->+5V, A2->GND
// Uncomment only the #define TABLE_SIZE 196608 line below.
//
// Uncomment the ONE line appropriate for your platform.
//#define TABLE_SIZE 65536 // 1 device: A0->GND, A1->GND, A2->GND
//#define TABLE_SIZE 131072 // 2 devices: A0->+5V, A1->GND, A2->GND
#define TABLE_SIZE 196608 // 3 devices: A0->GND, A1->+5V, A2->GND
//#define TABLE_SIZE 262144 // 4 devices: A0->+5V, A1->+5V, A2->GND
//#define TABLE_SIZE 327680 // 5 devices: A0->GND, A1->GND, A2->+5V
//#define TABLE_SIZE 393216 // 6 devices: A0->+5V, A1->GND, A2->+5V
//#define TABLE_SIZE 458752 // 7 devices: A0->GND, A1->+5V, A2->+5V
//#define TABLE_SIZE 524288 // 8 devices: A0->+5V, A1->+5V, A2->+5V

// default to the smallest - 1 device
#ifndef TABLE_SIZE
#define TABLE_SIZE 65536
#endif

// The number of demo records that should be created.  This should be less
// than (TABLE_SIZE - sizeof(EDB_Header)) / sizeof(LogEvent).  If it is higher,
// operations will return EDB_OUT_OF_RANGE for all records outside the usable range.
#define RECORDS_TO_CREATE 327

// Arbitrary record definition for this table.
// This should be modified to reflect your record needs.
struct LogEvent {
  int Lat;
  int Lon;
  int UTC_Time;
}
logEvent;

// Create an EDB object with the appropriate write and read handlers
EDB db(&E24C1024::write, &E24C1024::read);

// Run the demo
void setup()
{
  Serial.begin(9600);
  Serial.println("Extended Database Library + 24XX512 EEPROM Demo");

  randomSeed(analogRead(0));

  // create a table with starting address 0
  Serial.print("Creating table...");
  db.create(0, TABLE_SIZE, (unsigned int)sizeof(logEvent));
  Serial.println("DONE");

  recordLimit();
  countRecords();
  createRecords(RECORDS_TO_CREATE);
  countRecords();
  selectAll();
  countRecords();
  deleteAll();
  countRecords();
//  createRecords(RECORDS_TO_CREATE);
//  countRecords();
//  selectAll();
//  countRecords();
//  deleteAll();
//  countRecords();
}

void loop()
{
}

void recordLimit()
{
  Serial.print("Record Limit: ");
  Serial.println(db.limit());
}

void deleteAll()
{
  Serial.print("Truncating table...");
  db.clear();
  Serial.println("DONE");
}

void countRecords()
{
  Serial.print("Record Count: ");
  Serial.println(db.count());
}

void createRecords(int num_recs)
{
  Serial.print("Creating Records...");
  for (int recno = 1; recno <= num_recs; recno++)
  {
    logEvent.Lat = recno;
    logEvent.Lon = random(1, 125);
    logEvent.UTC_Time = random(126, 250);
    EDB_Status result = db.appendRec(EDB_REC logEvent);
    if (result != EDB_OK) printError(result);
  }
  Serial.println("DONE");
}

void selectAll()
{
  for (int recno = 1; recno <= db.count(); recno++)
  {
    EDB_Status result = db.readRec(recno, EDB_REC logEvent);
    if (result == EDB_OK)
    {
      Serial.print("Recno: "); Serial.print(recno);
      Serial.print(" LAT: "); Serial.print(logEvent.Lat);
      Serial.print(" LON: "); Serial.print(logEvent.Lon);
      Serial.print(" TIME: "); Serial.println(logEvent.UTC_Time);
    }
    else printError(result);
  }
}

void printError(EDB_Status err)
{
  Serial.print("ERROR: ");
  switch (err)
  {
    case EDB_OUT_OF_RANGE:
      Serial.println("Recno out of range");
      break;
    case EDB_TABLE_FULL:
      Serial.println("Table full");
      break;
    case EDB_OK:
      Serial.println("OK");
      break;
    default:
      Serial.println("Unknown Error");
      break;
  }
}


Hopefully this helps those looking to use Serial EEPROMs in their projects. I leaned very heavily on the work of others but thats usually the best way to get up to speed. Once you have a working knowledge its much easier to dive back in and truly understand the internal workings of the code.
